Pneumatiniai aktuatoriai

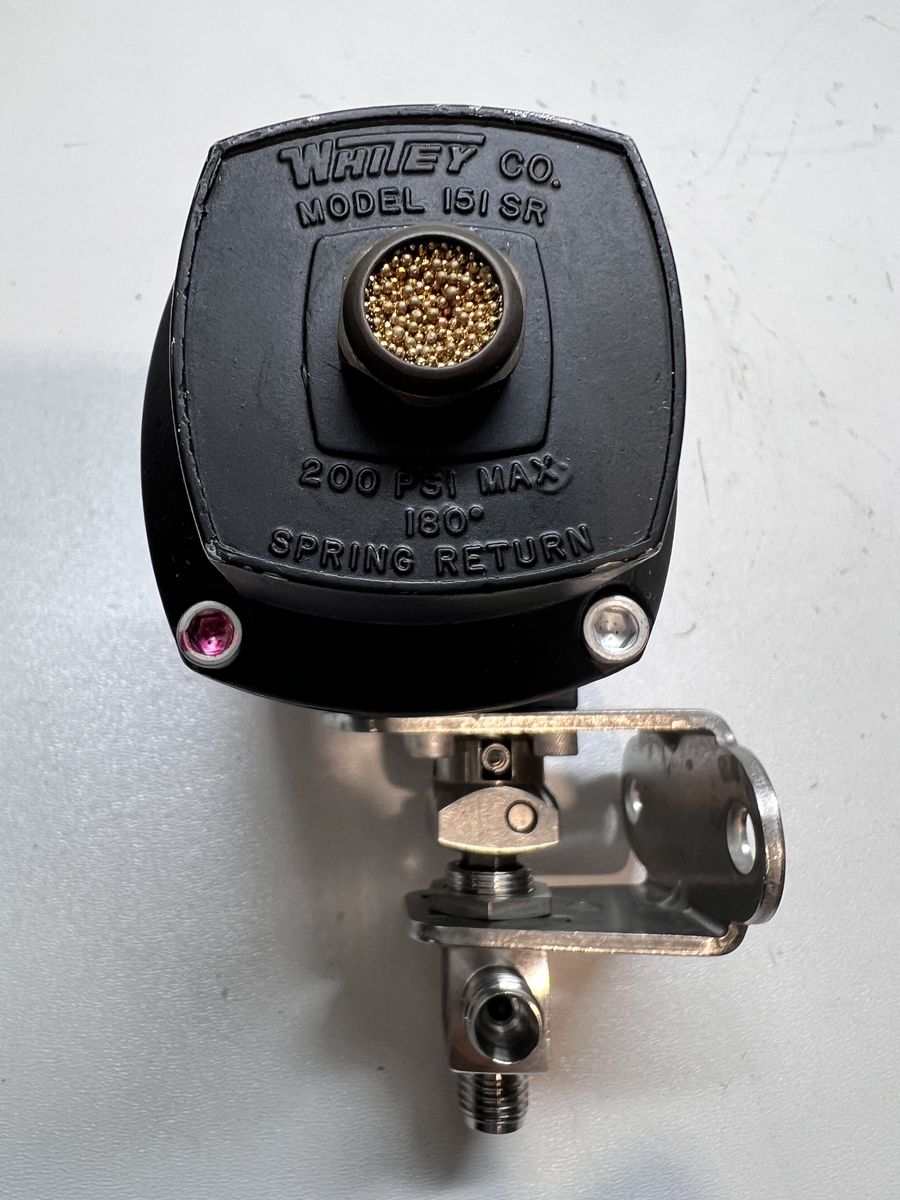

Swagelok 151SR / SS-42GXS4-51S
SKU: 4009
Sandėlyje
Garantiška informacija
Svarbu: All warranties are our own warranties and do not cover factory or manufacturer warranties.

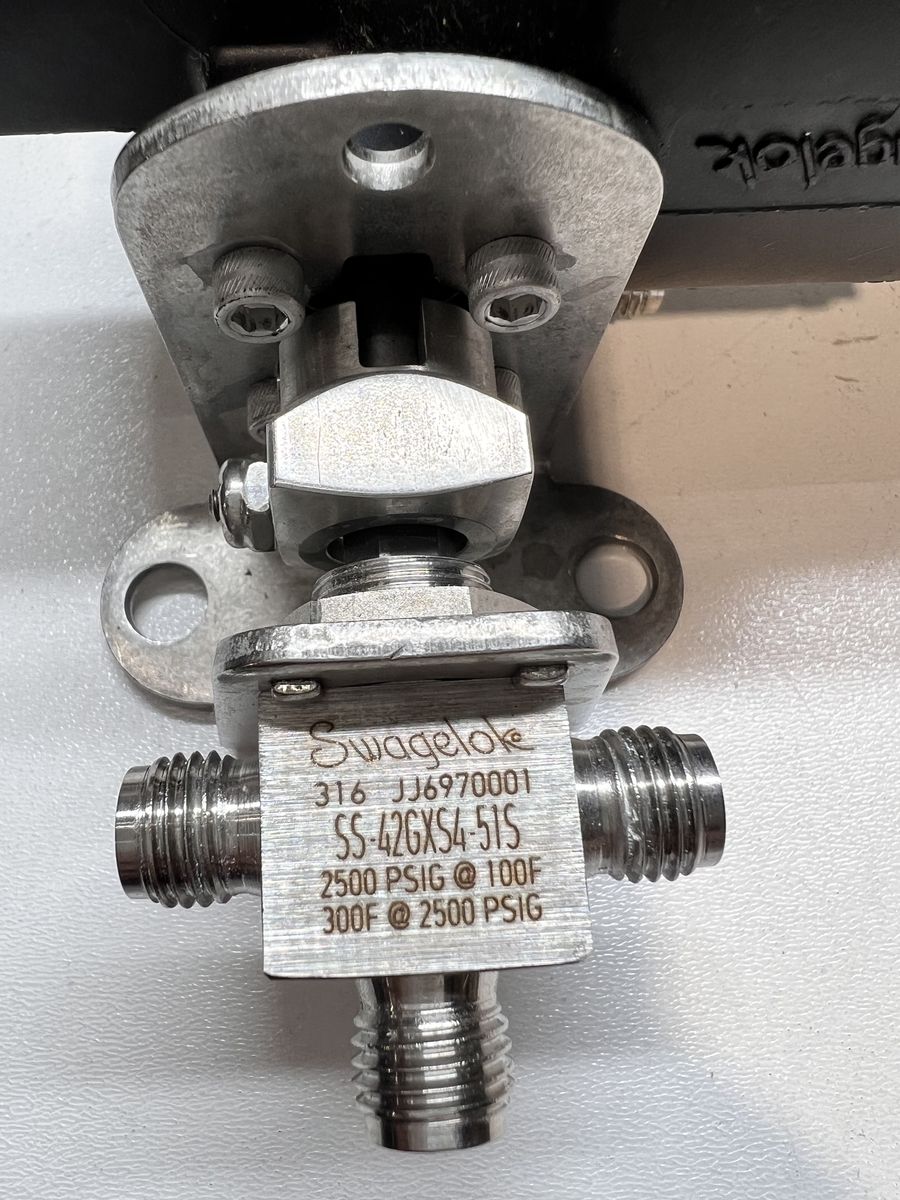

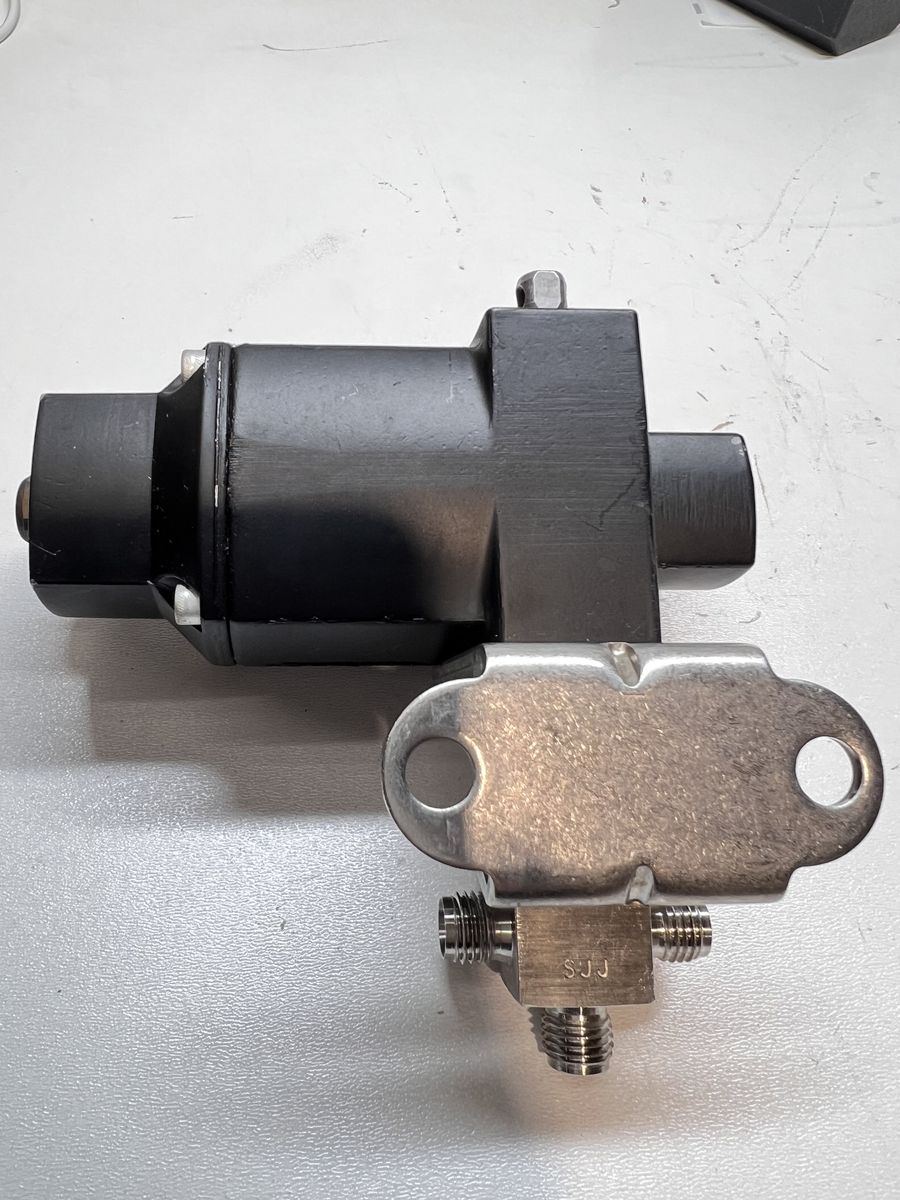

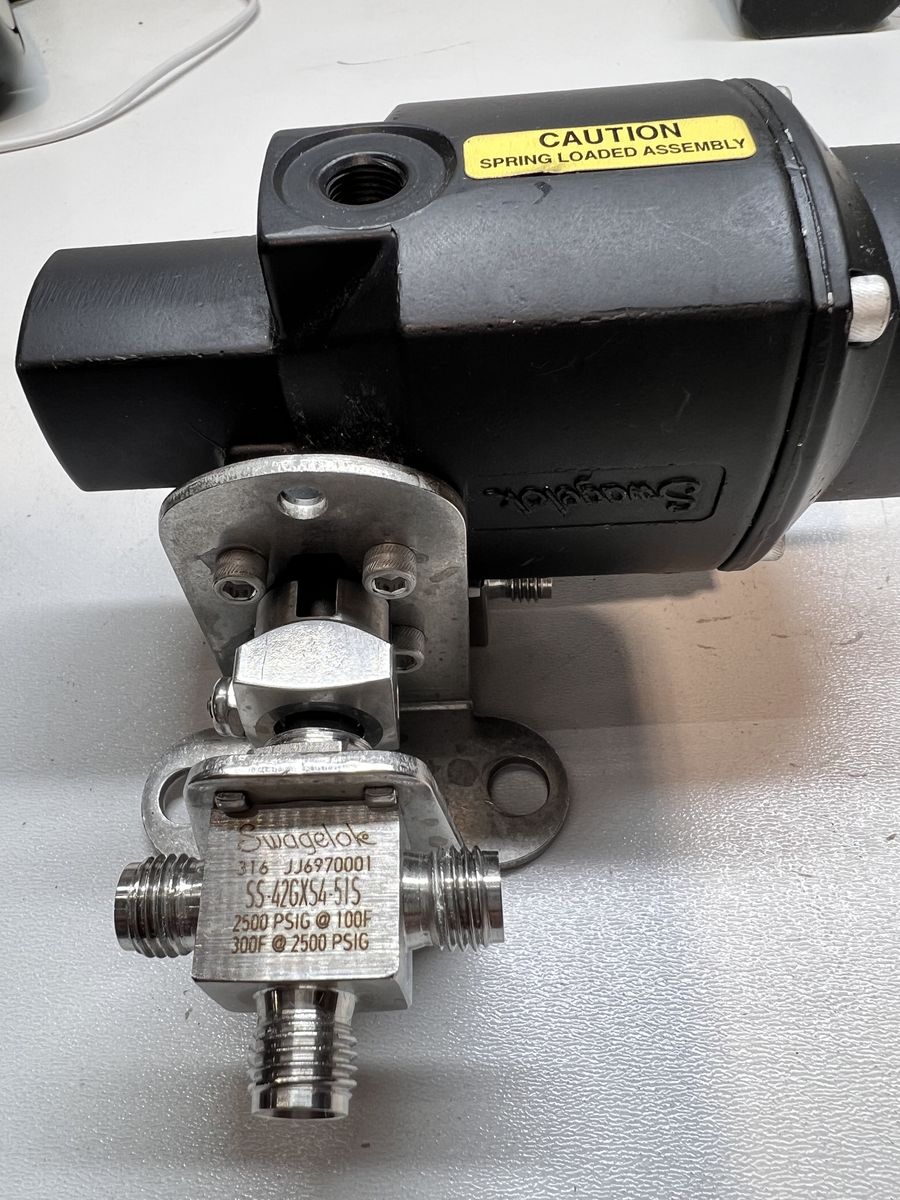

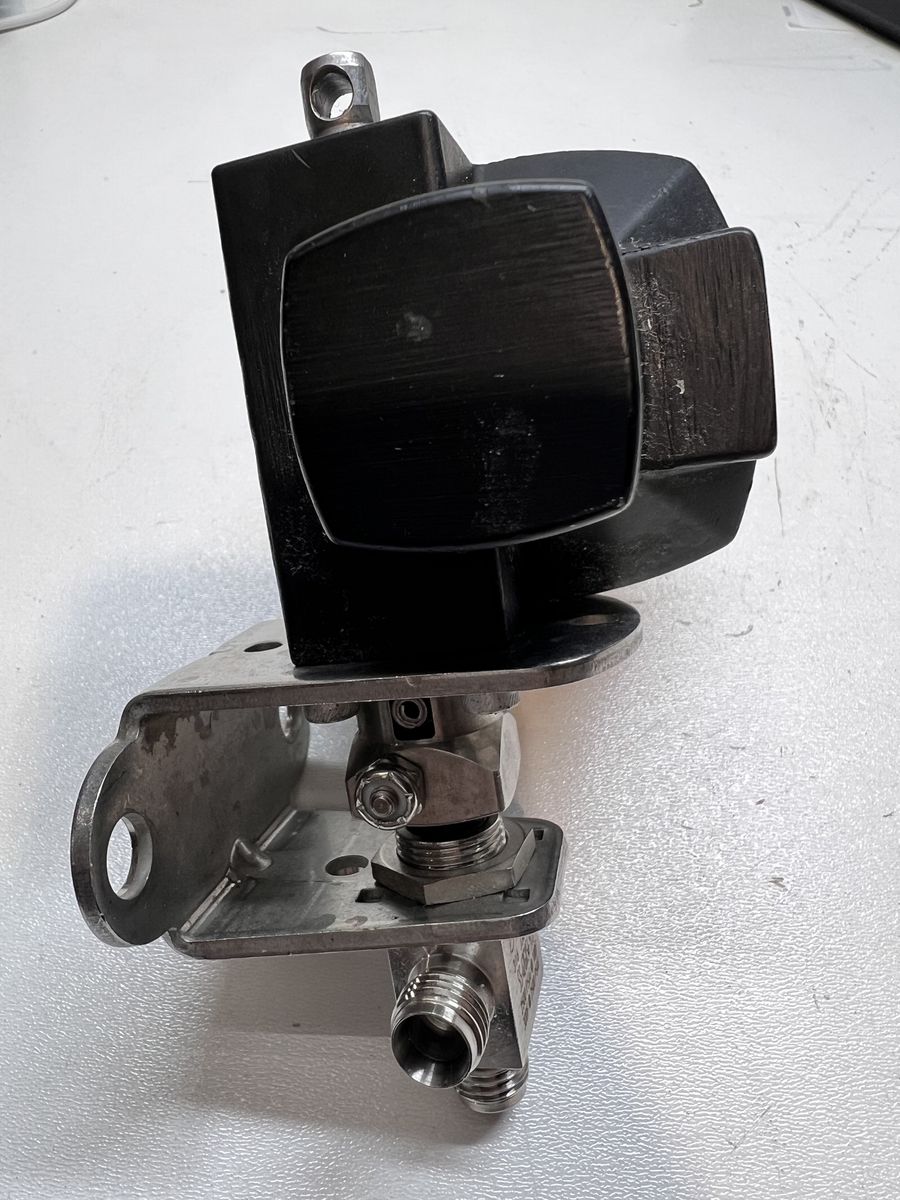

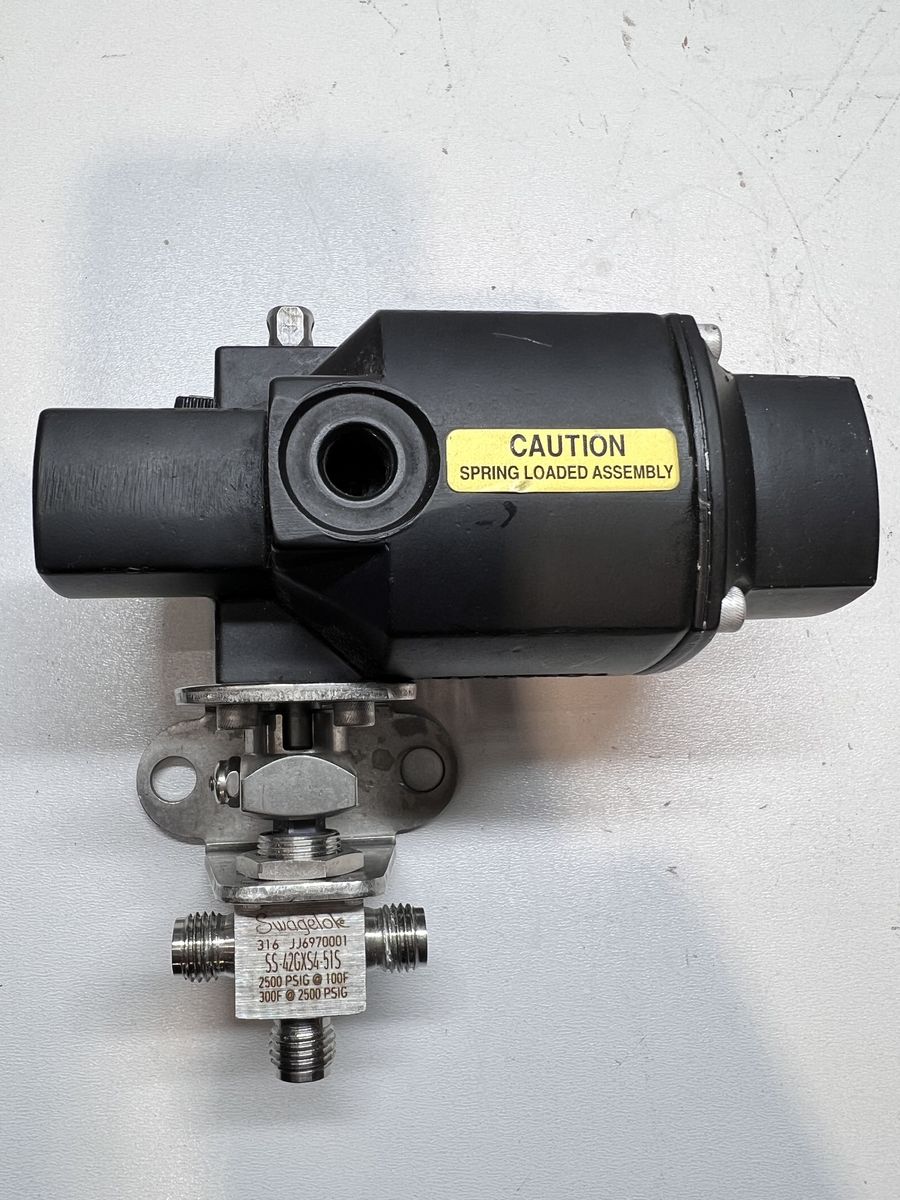

SS-42GXS4-51S — Stainless Steel 1-Piece 40G Series 3-Way Ball Valve, 0.35 Cv, 1/4 in. Swagelok Tube Fitting, 180° Spring Return Actuator
| Attribute | Value |
|---|---|
| Actuator Model | 151 Series |
| Actuator Operation Mode | Switching Spring Return |
| Actuator Type | Pneumatic |
| Ball/Stem Material | Stainless Steel |
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Tube Fitting |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Tube Fitting |
| Connection 3 Size | 1/4 in. |
| Connection 3 Type | Tube Fitting |
| CV Maximum | 0.35 |
| Flow Path | Standard |
| Flow Pattern | 3-Way, Switching |
| Handle Color | Black |
| Handle Style | Directional |
| Low Emissions Certified | Yes |
| Orifice | 0.125 in /3.2 mm |
| Packing Material | Modified PTFE UHMWPE |
| Ring/Disc Material | Stainless Steel |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37010401 |
| eClass (6.1) | 37010401 |
| eClass (10.1) | 37010401 |
| UNSPSC (4.03) | 40141607 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (17.1001) | 40141607 |
×
![]()
