Srauto matuoklis

Brooks Instrument GT1600 series

SKU: 3002

Sandėlyje

Naudotas
Gautas iš darbo aplinkos

Be PVM: €300,00 (1 prieinama)

Įskaitant PVM: €363,00

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Svarbu: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiniai laikotarpiai pagal sąlygas

Naujas 12 mėnesiai

Atnaujintas 3 mėnesiai

Naudotas DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

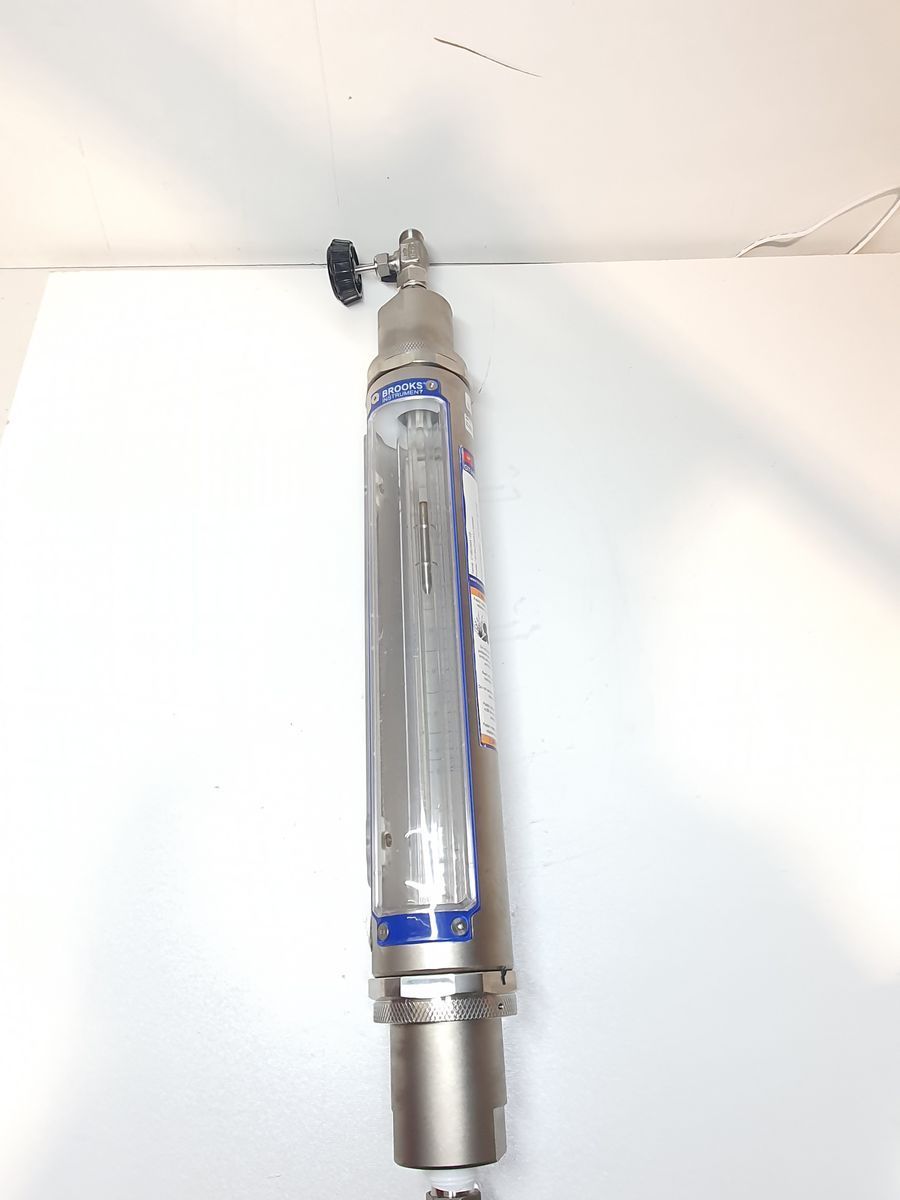

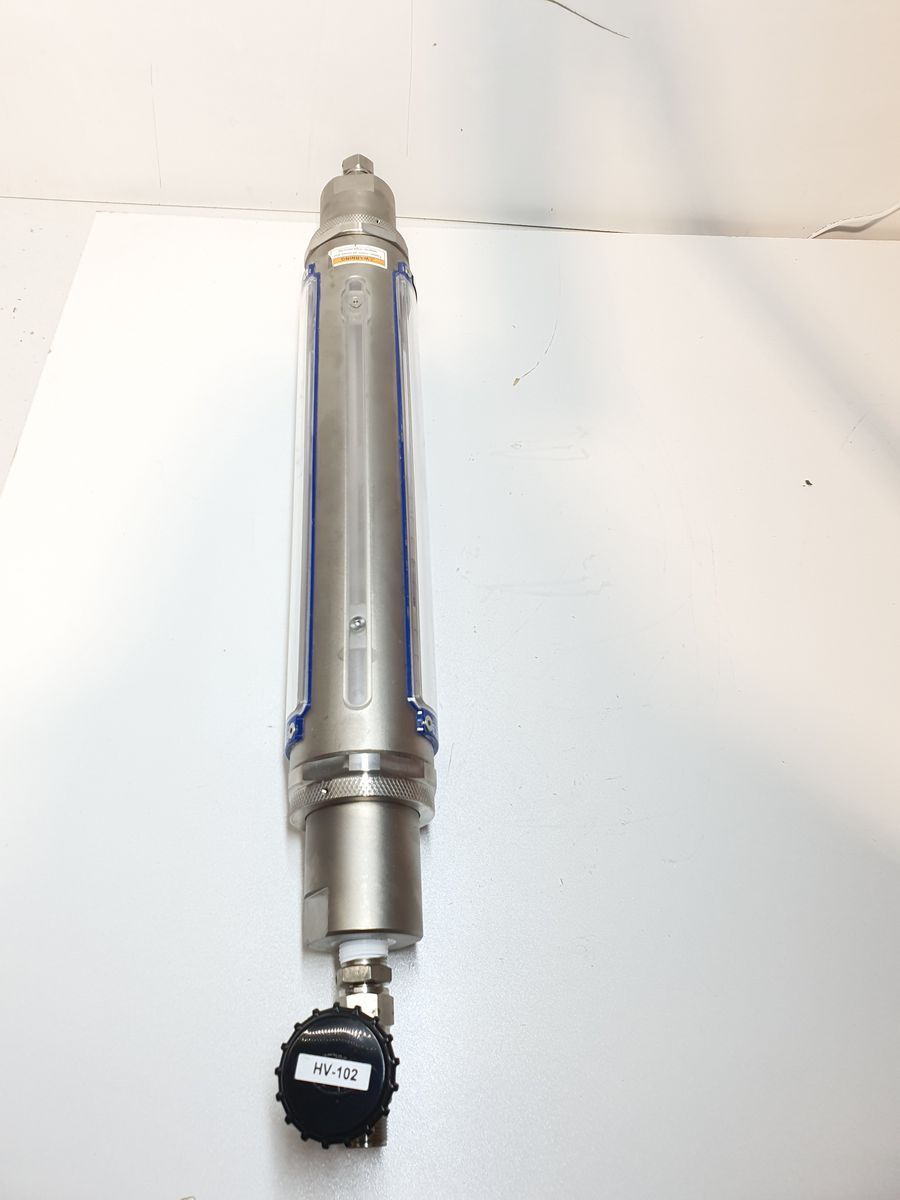

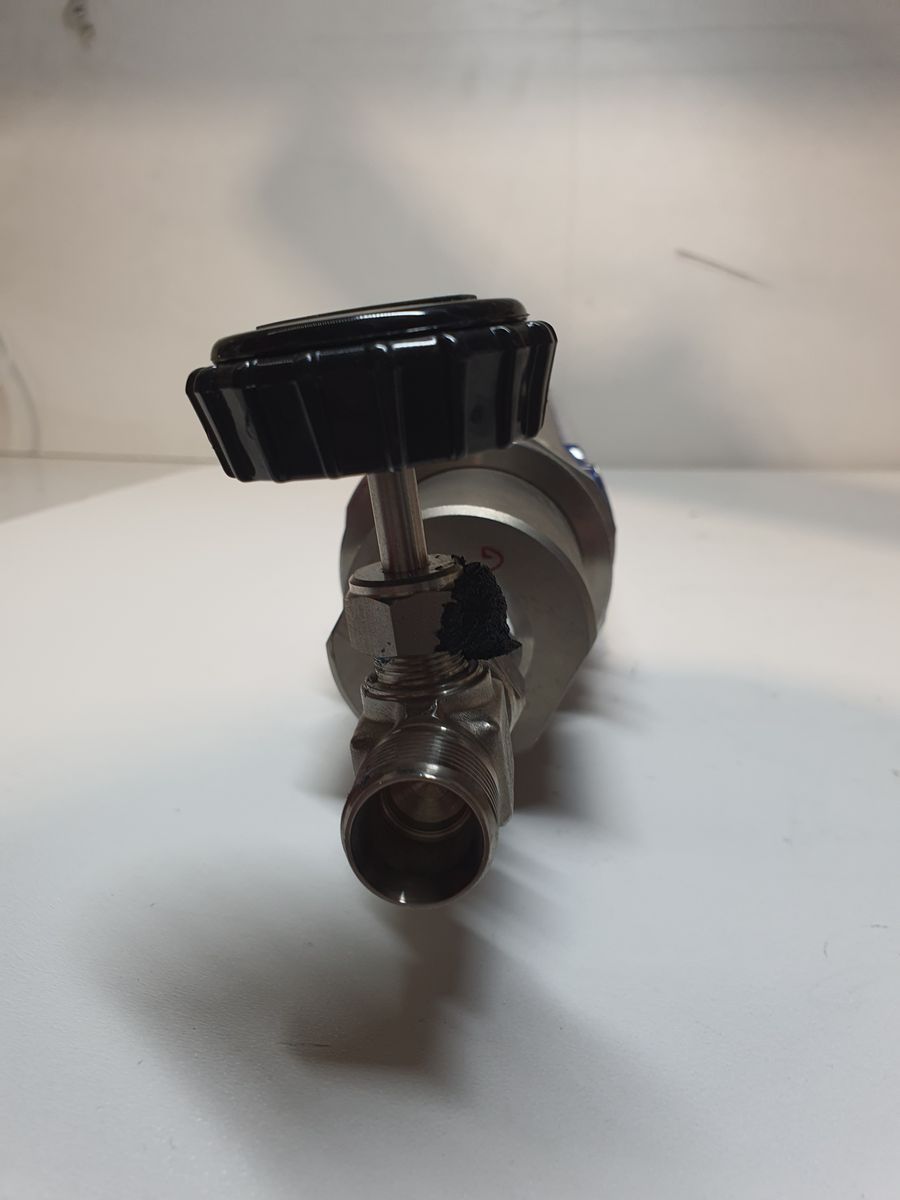

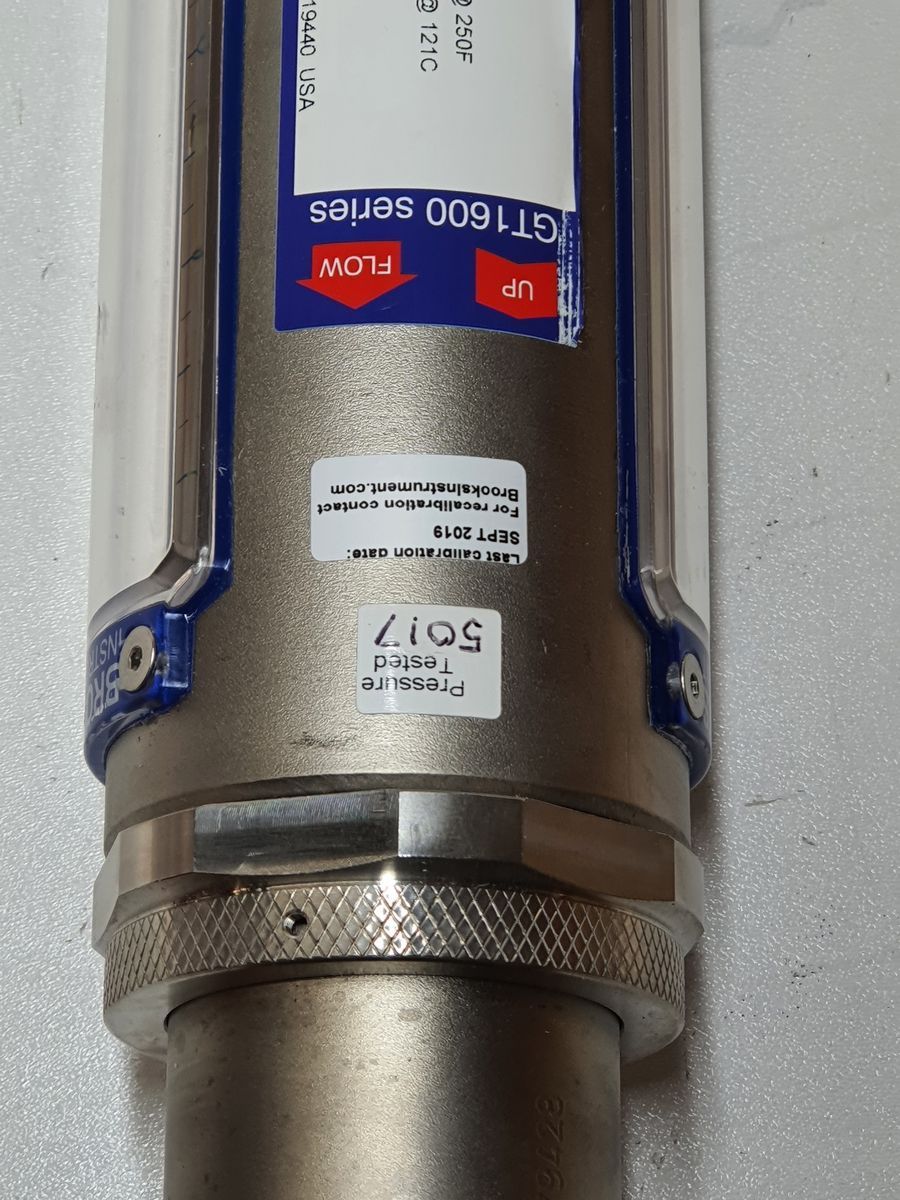

Brooks Instrument GT1600 series variable area flow meter/ rotameter

Parameter	Specification
Meter Type	Glass Tube Variable Area Flow Meter (Rotameter)
Series	GT1600
Body Material	316 stainless steel
Tube Material	Borosilicate glass
Safety Shield	Polycarbonate
Process Fittings	316 / 316L dual-certified stainless steel
Accuracy (Typical)	±1% to ±10% of full scale (depending on configuration)
Repeatability	≤ ±0.5% of full scale
Measurement Range	18–40–180 bar, Fl-100
Operating Fluid Temperature	Up to approx. 121 °C (250 °F)
Ambient Temperature	–20 °C to 52 °C (–4 °F to 125 °F)
Mounting	Vertical inline, panel mount, or wall mount with rotatable viewing
Scale Options	Multiple lengths (e.g. 75, 127, 250 mm) with selectable units
Alarm Options	Ring initiator or reed switch high/low alarms (optional)
