Pneumatiniai aktuatoriai

Parker B32-2110A-100

SKU: 4041

Sandėlyje

Pasirinkite būklę

New

Be PVM: €70,00 (1 prieinama)

Įskaitant PVM: €84,70

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Garantiška informacija

Svarbu: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiniai laikotarpiai pagal sąlygas

Naujas 12 mėnesiai

Atnaujintas DOA

Naudotas DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Aprašymas

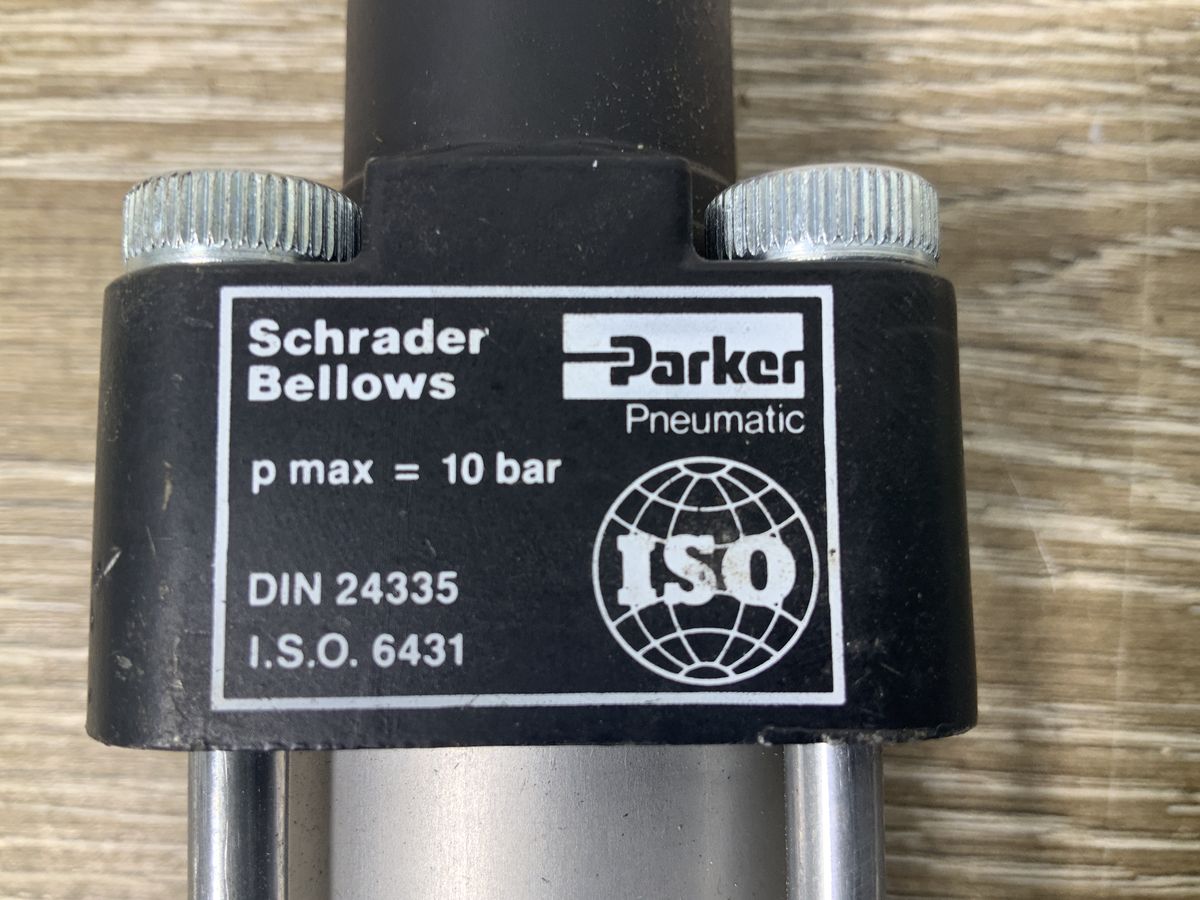

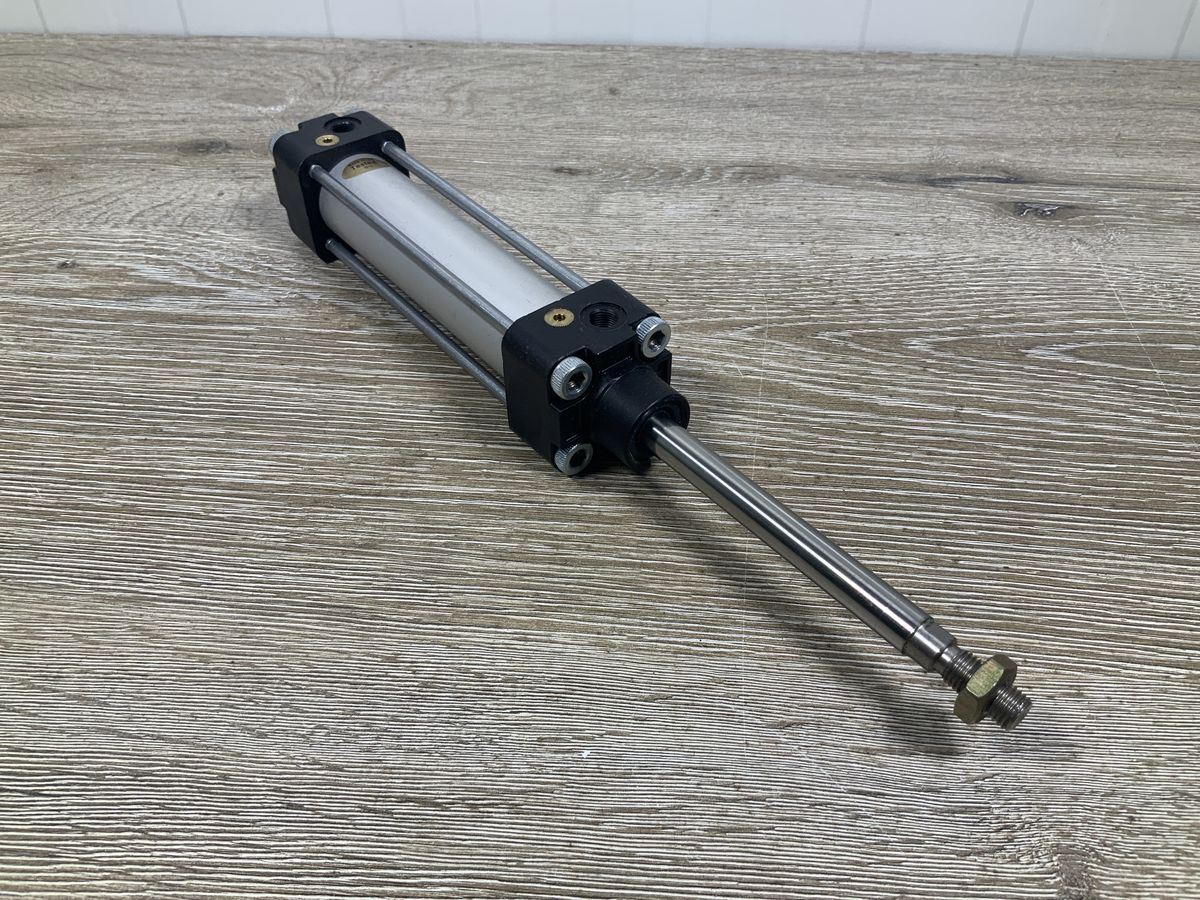

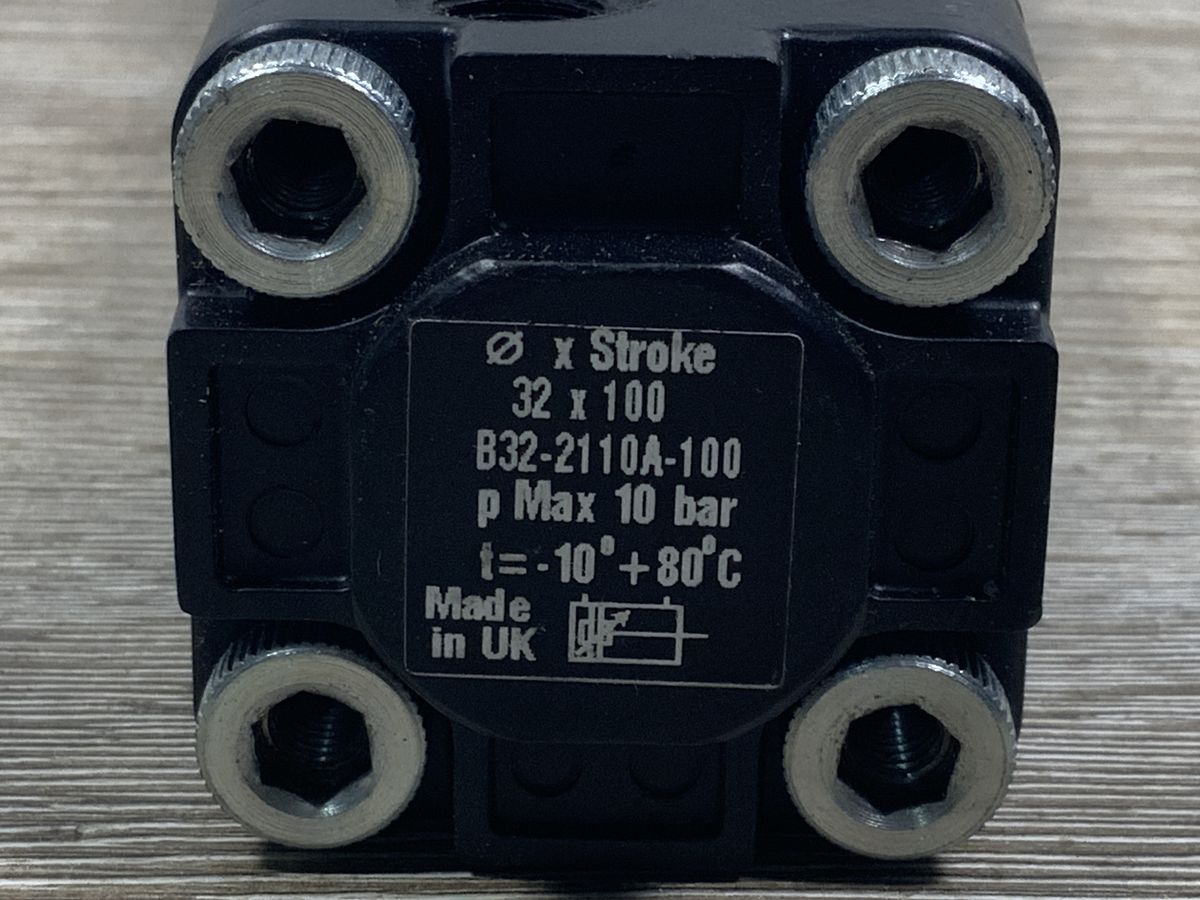

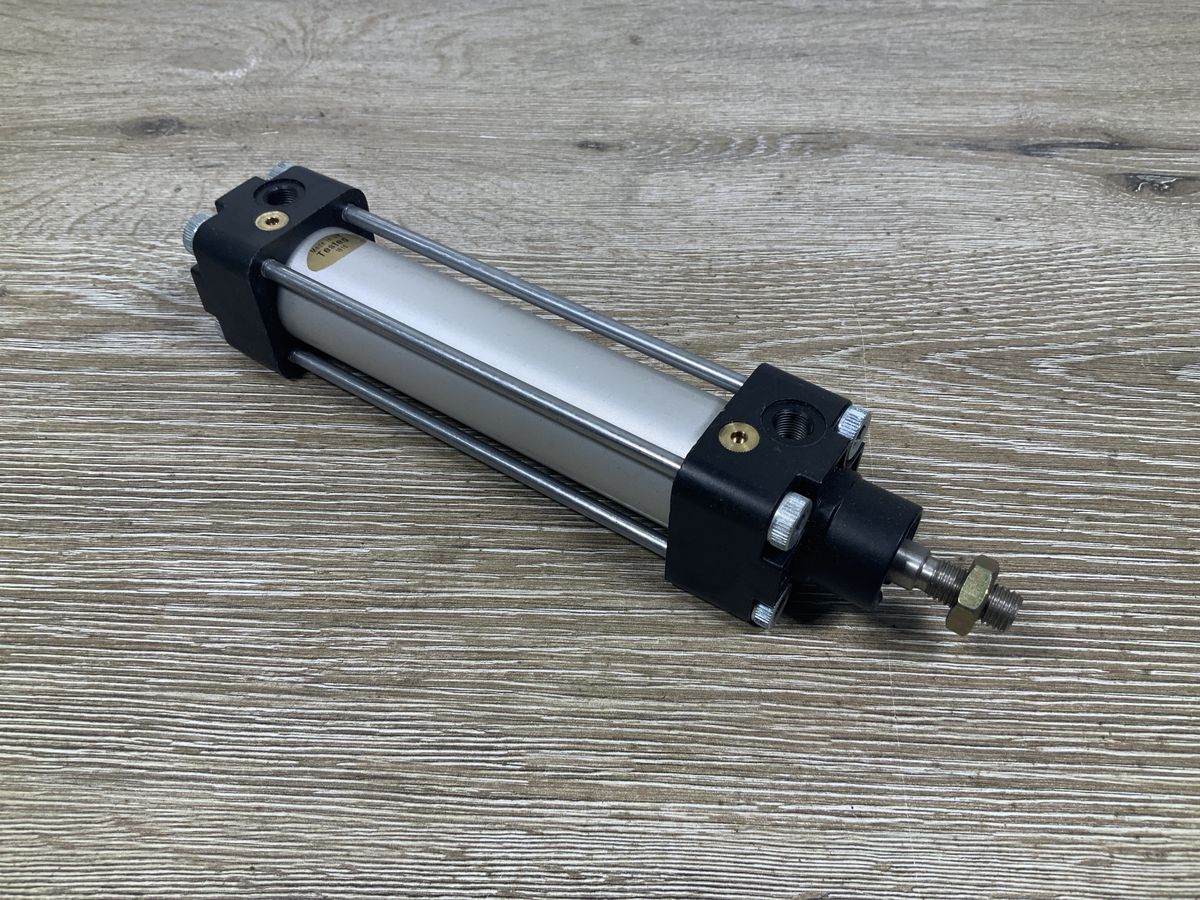

The Parker Schrader Bellows B32-2110A-100 is a tie-rod pneumatic cylinder built to ISO 6431 and DIN 24335 standards. It features a 32 mm bore diameter and a 100 mm stroke length with a maximum operating pressure of 10 bar. Designed for industrial motion and automation tasks, it operates reliably within an ambient temperature range of -10°C to +80°C.

Specifications – B32-2110A-100

Parameter	Specification
Bore	32 mm
Stroke	100 mm
Maximum Pressure	10 bar
Temperature Range	-10°C to +80°C
Standard	ISO 6431 / DIN 24335
Country of Origin	United Kingdom
