Transformatoriai

Tecnotrafo 220842NRG02

SKU: 44001

Sandėlyje

Pasirinkite būklę

New

Be PVM: €100,00 (1 prieinama)

Įskaitant PVM: €121,00

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Garantiška informacija

Svarbu: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garantiniai laikotarpiai pagal sąlygas

Naujas 12 mėnesiai

Atnaujintas 6 mėnesiai

Naudotas 3 mėnesiai

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Aprašymas

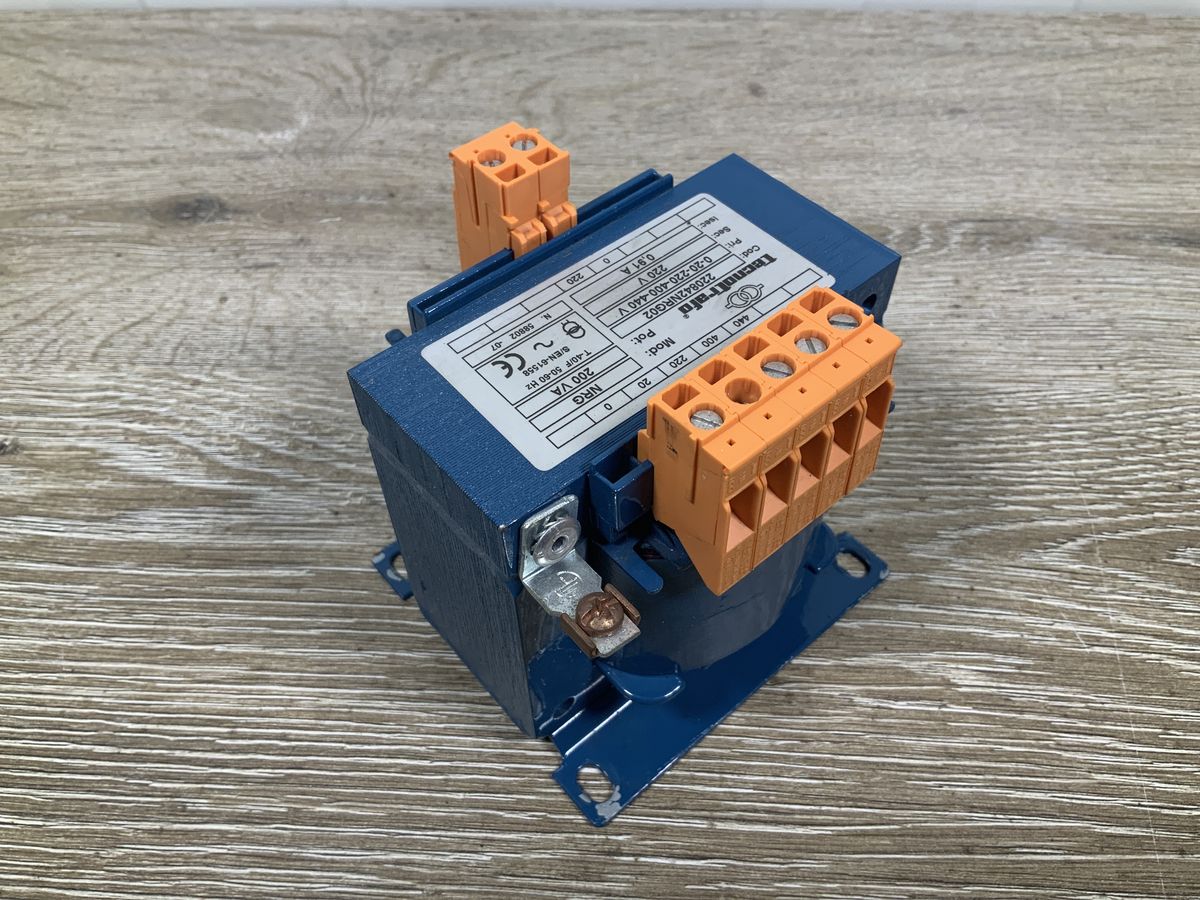

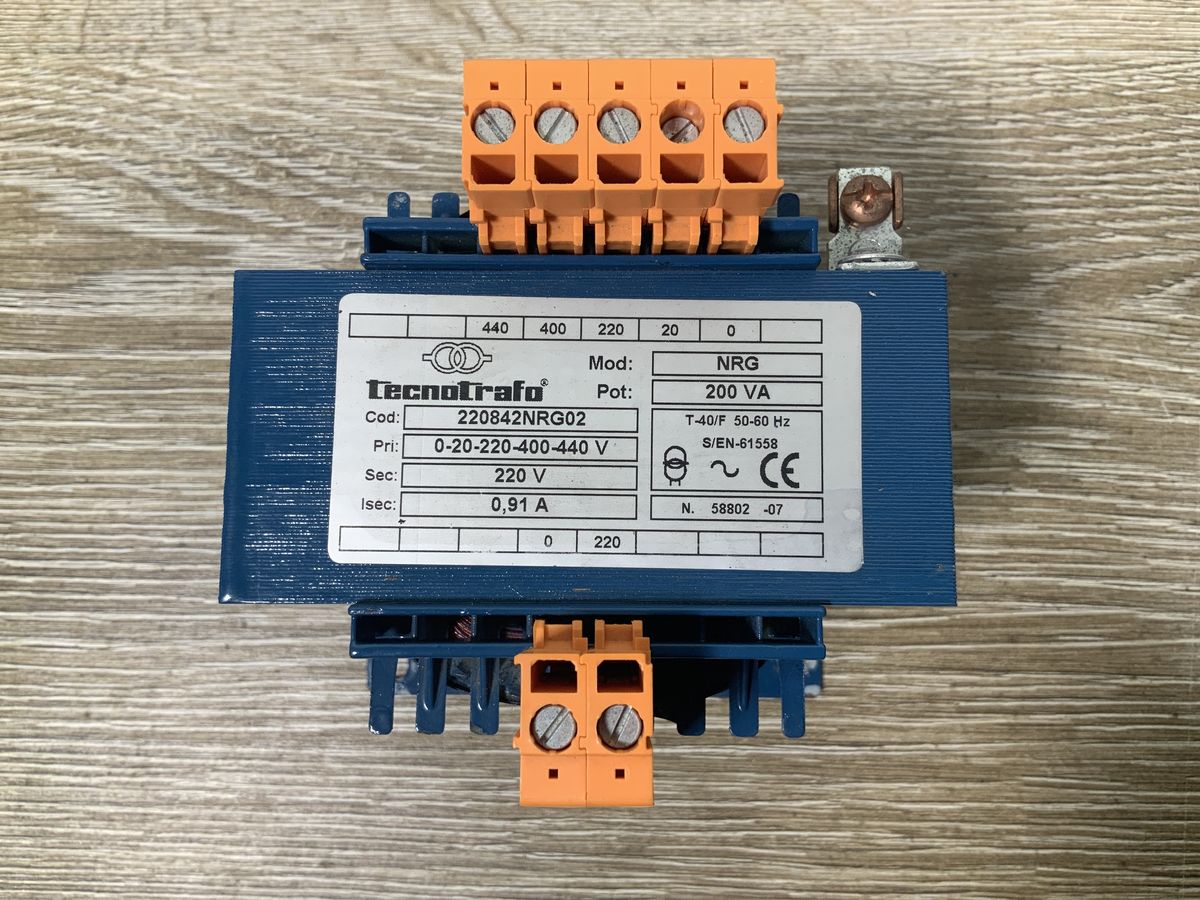

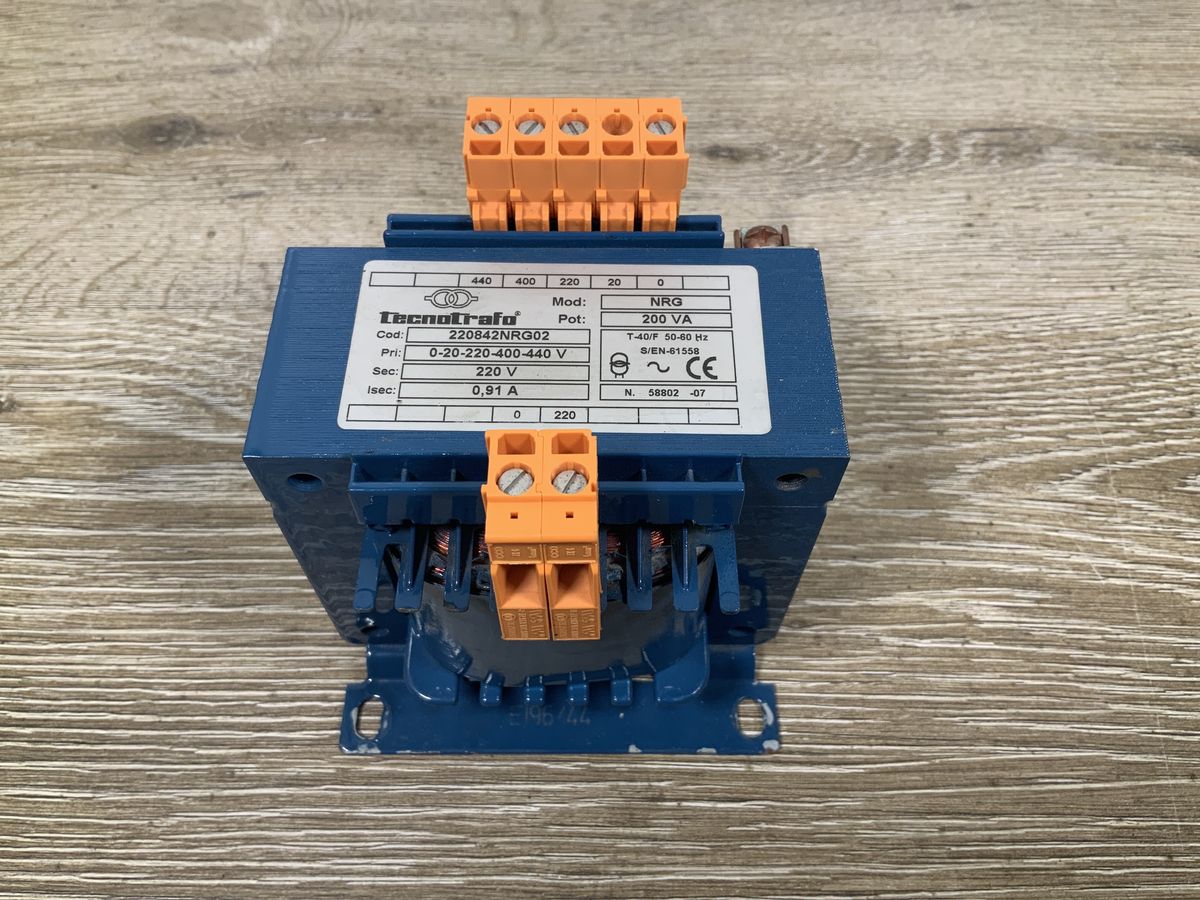

The Tecnotrafo 220842NRG02 is a 200 VA single-phase industrial control transformer. It features multi-tap primary voltage inputs for 0-20-220-400-440 V and a secondary output voltage of 220 V at 0.91 A. Designed for panel and control box installation, it includes top and bottom screw-terminal connection blocks.

Specifications – 220842NRG02

Parameter	Specification
Power Rating	200 VA
Primary Voltage	0-20-220-400-440 V
Secondary Voltage	220 V
Secondary Current	0.91 A
Frequency	50-60 Hz
Temperature / Insulation Class	T-40/F
Standard	EN-61558
