Reguliatoriai
Tescom 26-1725-24-043
SKU: 8009
Sandėlyje
Garantiška informacija
Svarbu: All warranties are our own warranties and do not cover factory or manufacturer warranties.

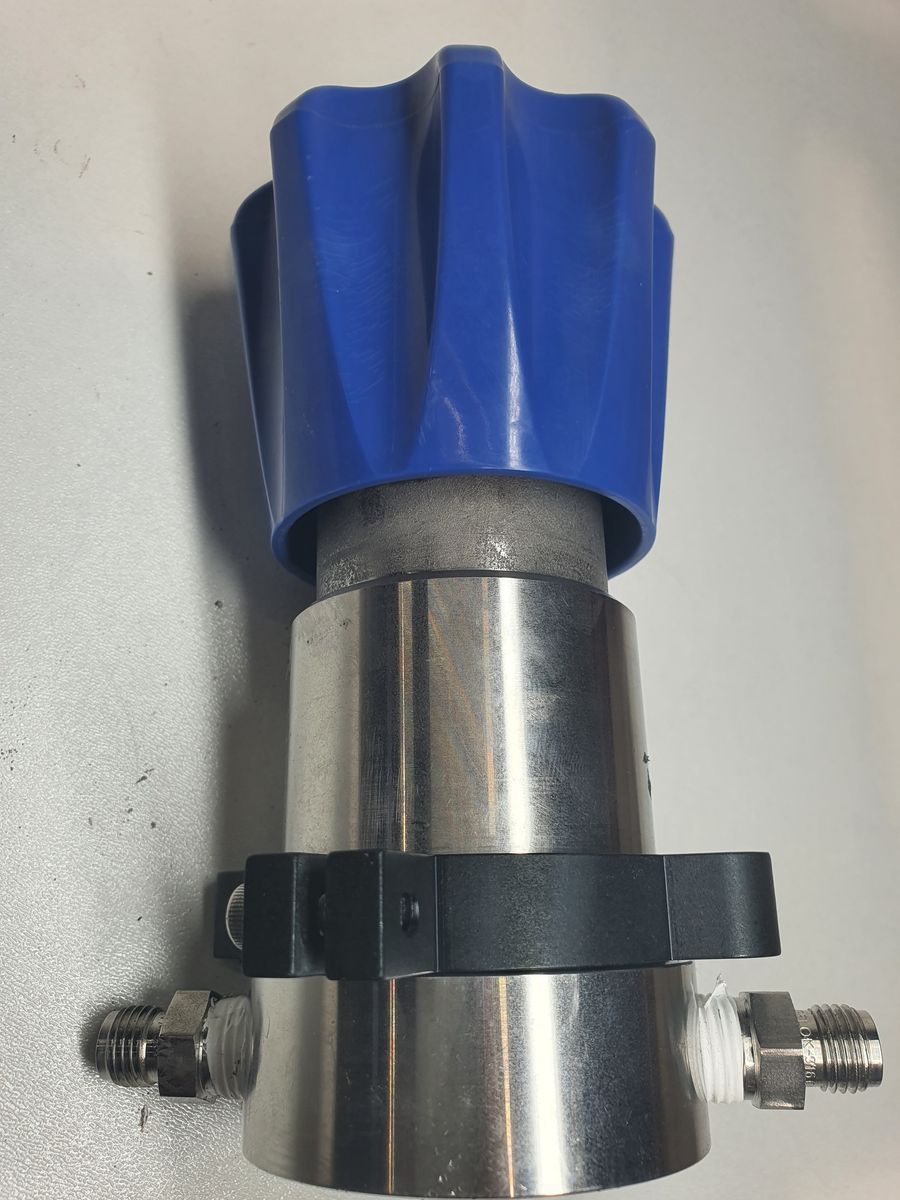

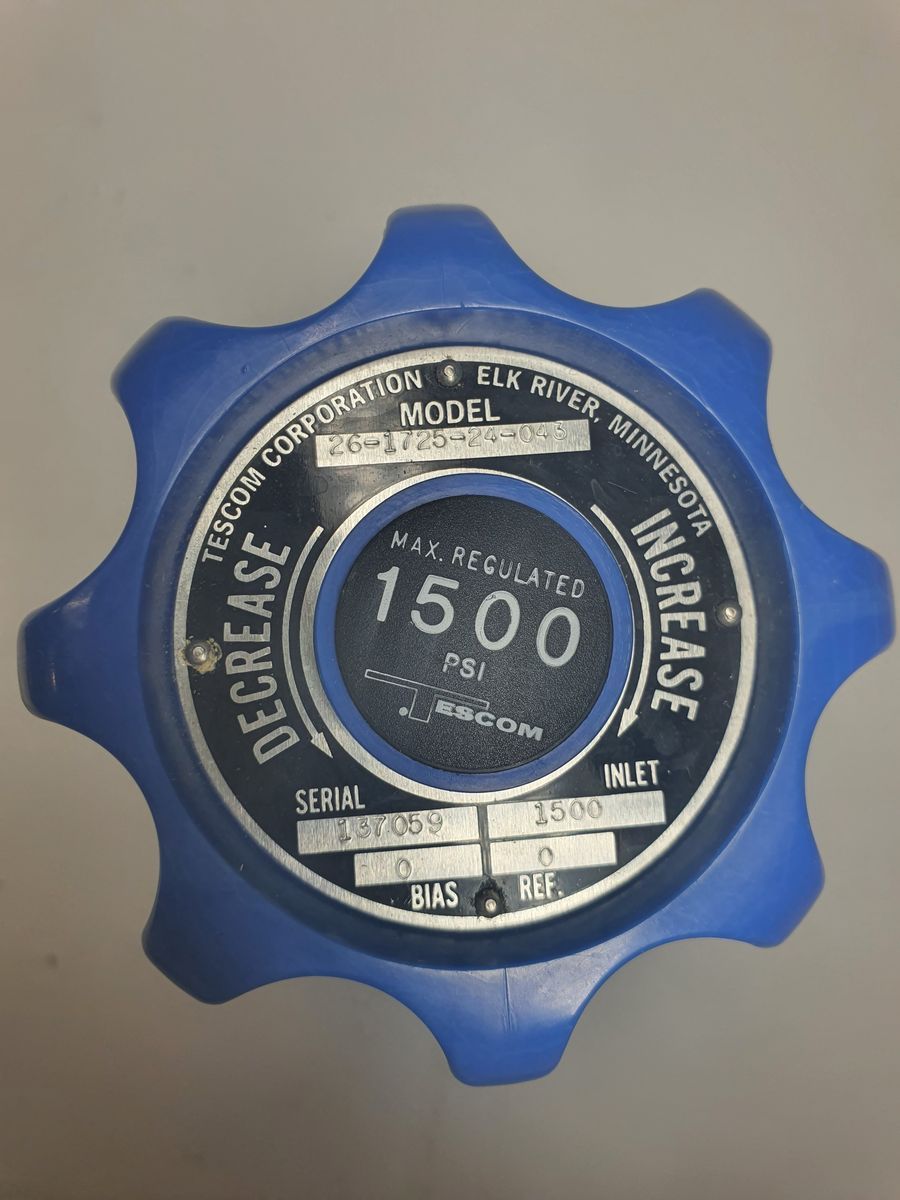

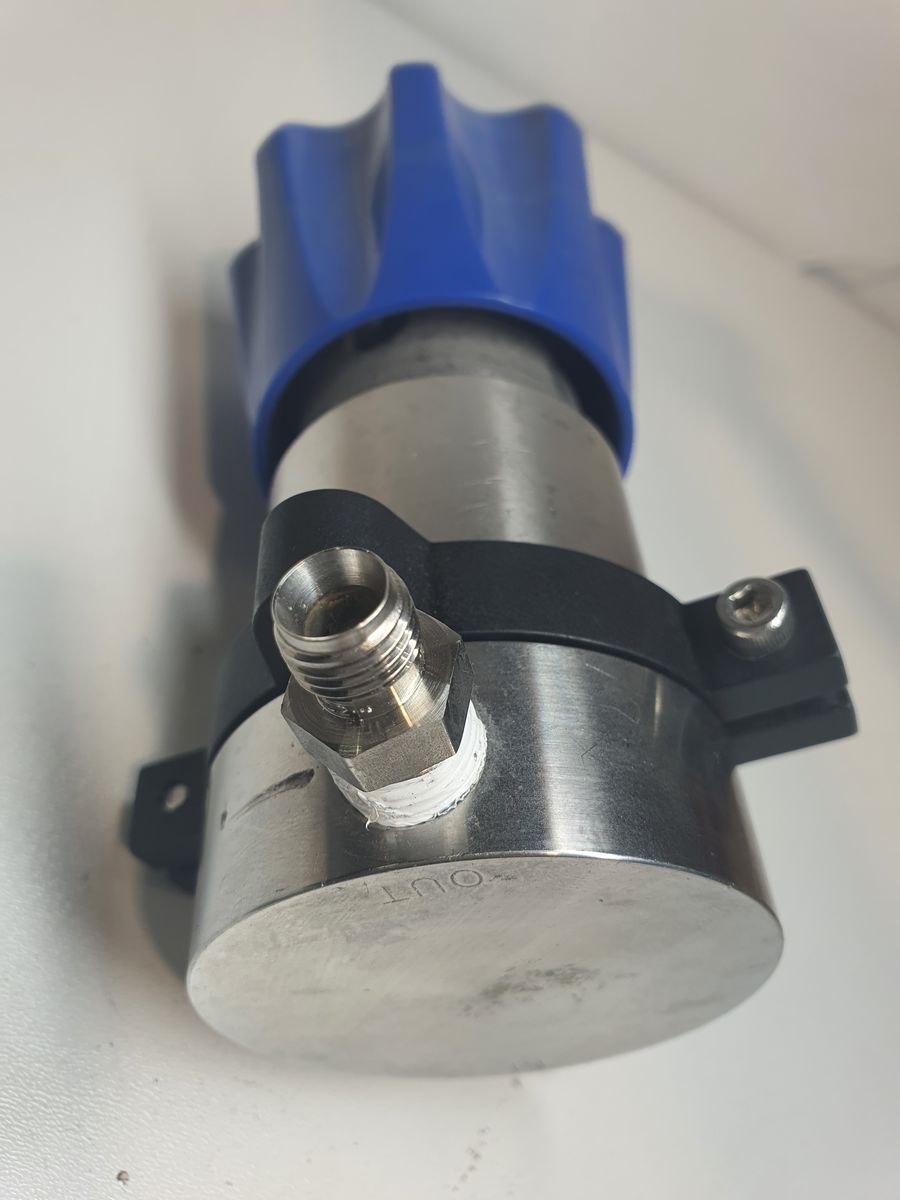

TESCOM Elk River Minnesota 26-1725-24-043 Drukregelaar
| Category | Parameter |
|---|---|
| Pressure Rating | Standard |
| Maximum Inlet Pressure | 10–1500 psig (0.69–103 bar) |
| Design Proof Pressure | 150 % of maximum rated pressure |
| Leakage | Bubble-tight |
| Operating Temperature | −40 °F to +165 °F (−40 °C to +74 °C) |
| Flow Coefficient | Cv = 0.14 |
| Maximum Operating Torque | 40 in-lb / 4.5 N·m |
| Body Material | 316 Stainless Steel |
| Bonnet / Cover Material | 300-series Stainless Steel |
| Other Components | 300-series Stainless Steel |
| Seal / Liner Material | CTFE |
| Seat Material | Teflon® |
| O-Rings | Buna-N |
| Backup Ring | Teflon® |
| Cleaning | CGA 4.1 and ASTM G93 compliant |
| Weight | 5 lb / 2.2 kg |
×
![]()
